If your TSI or TFSI engine hesitates under load, struggles to start, or throws a lean code, "check the fuel pressure" is common advice — but on a direct-injection VW/Audi engine, that advice needs a caveat most people skip. These engines run two separate fuel pumps at two very different pressures, and a basic mechanical gauge can only test one of them. Here's how to test the one it can, and why that's still the right first step.
Tools You'll Need

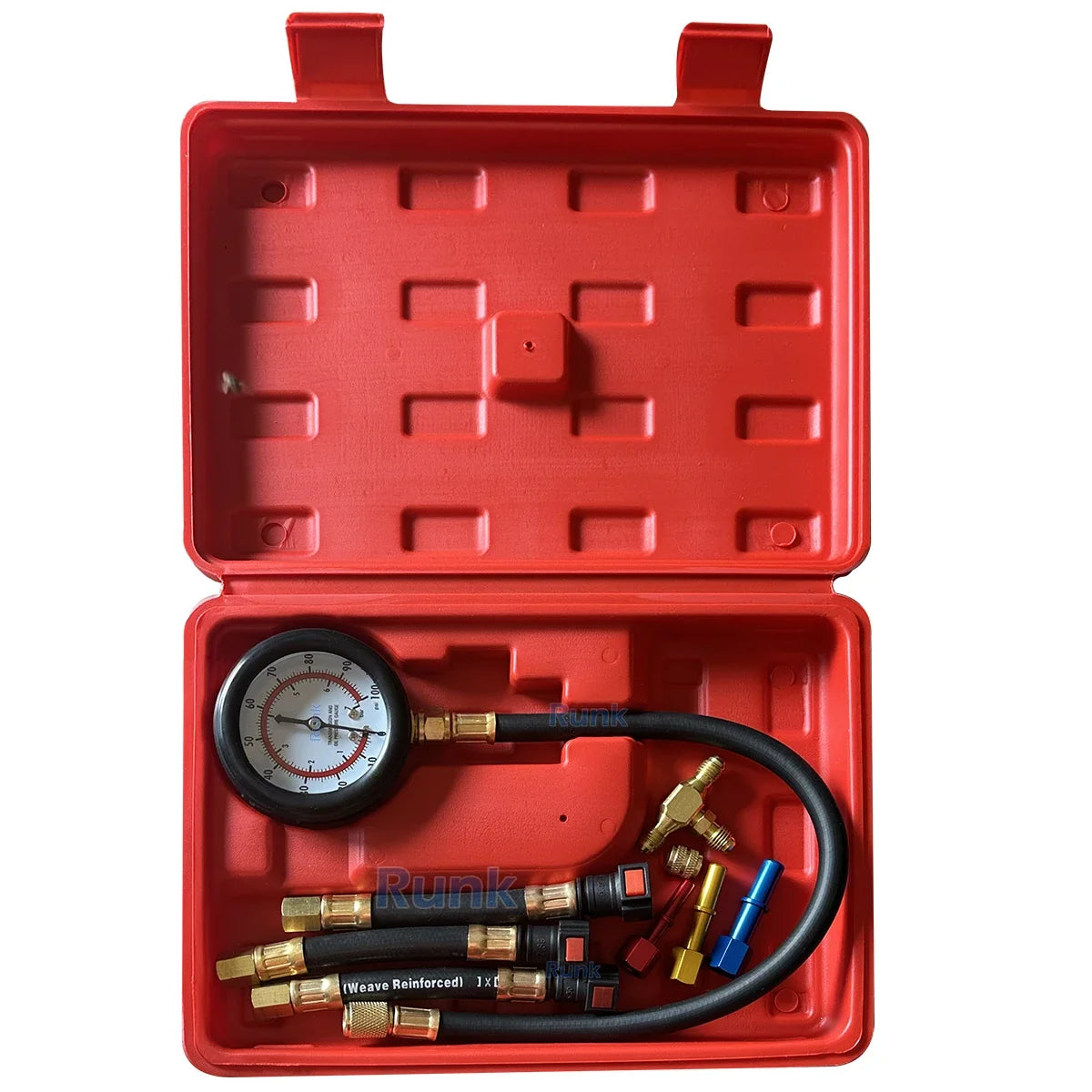

- Fuel Pressure Tester Kit (0–100 PSI) — sized specifically for the low-pressure side of a GDI fuel system
- Shop rags and a fuel-safe catch container
- Ideally, an OBD-II or VCDS-capable scan tool for cross-checking (see below)
Why There Are Two Fuel Pumps
Every TSI/TFSI engine uses a low-pressure fuel pump (LPFP) inside the fuel tank that feeds a camshaft-driven high-pressure fuel pump (HPFP) mounted on the engine. The LPFP typically supplies somewhere in the neighborhood of 50–60 PSI to the HPFP inlet. From there, the HPFP multiplies that to anywhere from several hundred to well over a thousand PSI at the rail, depending on load and engine — far beyond what a mechanical gauge is built to read safely.
A 0–100 PSI gauge is the right tool for the LPFP side. It is not the right tool for rail pressure, and you should never try to tap into the high-pressure rail with mechanical test equipment.
Step 1: Relieve System Pressure Safely
Before disconnecting any fitting, relieve pressure per your model's procedure (often via a fuse pull and a few seconds of cranking) and wrap the fitting in a rag — residual fuel will still be present even after the pump stops running.
Step 2: Connect the Gauge on the Supply Side
Using the adapter that matches your fuel line fitting, tee the pressure tester into the low-pressure supply line between the tank and the HPFP inlet. Make sure every connection is snug — a weeping fitting will read as a weak pump.
Step 3: Key On, Engine Off
Cycle the key to "on" without cranking. The in-tank pump should prime for a couple of seconds and the gauge should climb and hold. A gauge that climbs slowly, doesn't reach a stable pressure, or bleeds down quickly after the pump stops points to a weak pump, a clogged in-tank filter/sock, or a leaking check valve.
Step 4: Idle and Load Test
Start the engine and watch the gauge at idle, then have a helper briefly rev the engine while you watch for pressure sag. A pump that holds fine at idle but sags under demand is a classic sign of a pump nearing the end of its life, especially on high-mileage cars or ones that regularly run low on fuel (running a tank near empty is hard on in-tank pumps since they rely on the fuel itself for cooling).
What This Test Won't Tell You
If the LPFP checks out fine but you're still seeing a lean condition, hesitation, or a P0087/P2293-family code, the problem is downstream — in the HPFP itself, the fuel rail pressure sensor, or the pressure regulator valve. Diagnosing that side requires reading live fuel rail pressure (actual vs. requested) through a scan tool, since it's a closed-loop electronic system, not something you can put a mechanical gauge on safely.
When to Suspect the Low-Pressure Side vs. the High-Pressure Side
- Suspect the LPFP if: the car struggles to start after sitting, runs worse when the tank is low, or the gauge from this test reads low or unstable.
- Suspect the HPFP or rail system if: the LPFP tests normal, but you're seeing a rail pressure fault code, hesitation specifically under boost/load, or a large gap between requested and actual rail pressure on a scan tool.
