Front suspension bushings on the E46 don't fail dramatically — they just slowly go soft, and by the time you notice, you've adjusted to the vague steering and extra clunk over bumps without realizing how much has changed. A front-end refresh with polyurethane sway bar bushings and fresh lower control arm hardware brings back the sharp, planted feel these chassis are known for, and it's a very doable weekend job.
Tools You'll Need

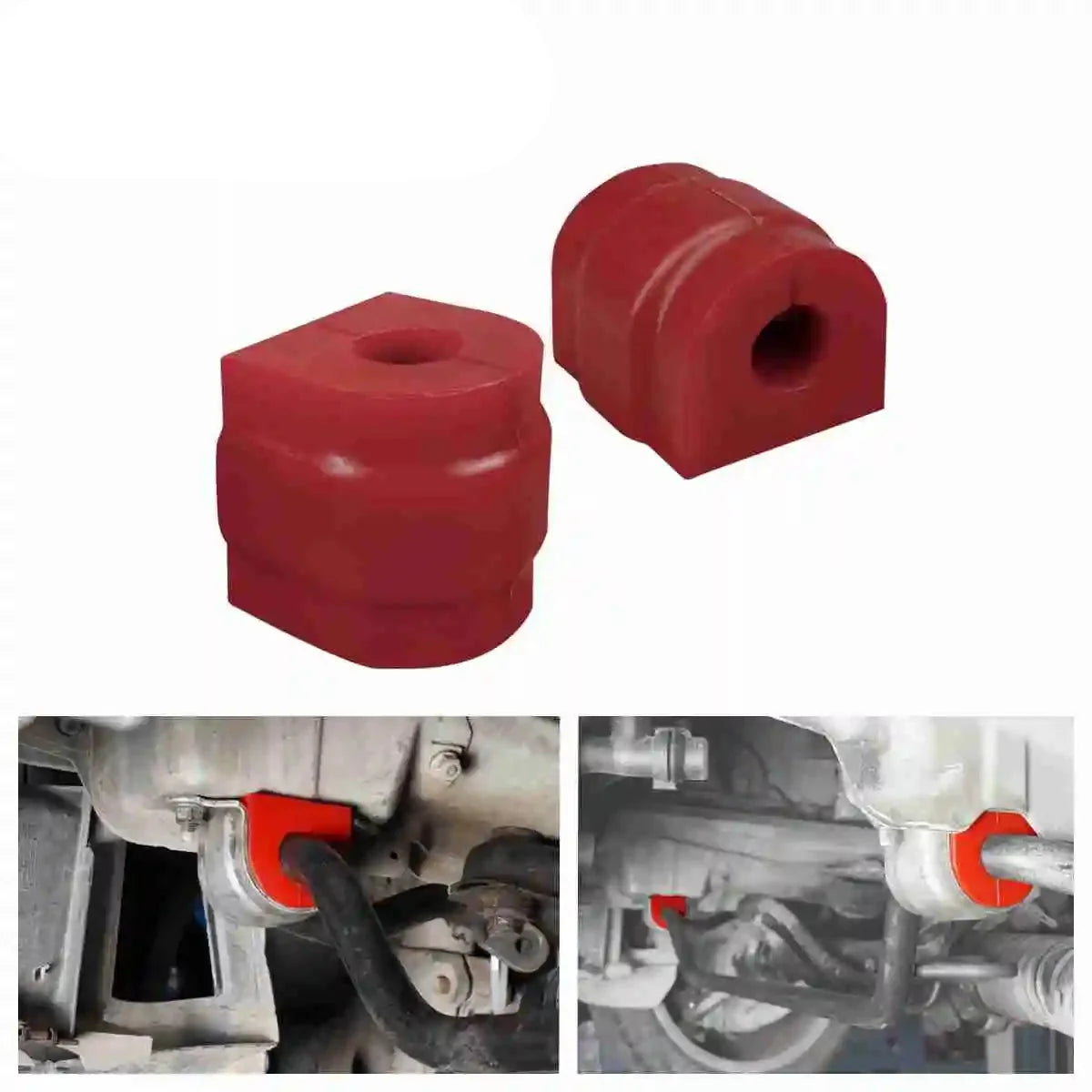

- Polyurethane Front Anti-Roll Sway Bar Bushing (E46) — direct replacement for the factory rubber bushings
- Lower Control Arm Prying Tool — leverages the control arm back into its bushing without a fight
- Adjustable Ball Joint Separator, 19mm — for popping the ball joint free from the steering knuckle
- Coil Spring Compressor Set — required if you're pulling the strut assembly for spring or mount work while you're in there
You'll also want penetrating oil for the sway bar end link and control arm bolts (these are notorious for seizing on E46s that have seen winter roads), a torque wrench, and jack stands rated for the job.
Step 1: Soak the Fasteners First
Do this the night before if you can. E46 control arm bolts and sway bar end links corrode in place more often than not, and trying to break them loose dry is how you end up snapping a bolt in the subframe.
Step 2: Remove the Sway Bar End Links and Bracket
Disconnect the end links from the sway bar, then remove the sway bar mounting brackets to free the bar enough to access the bushings.
Step 3: Swap the Sway Bar Bushings
Slide the old rubber bushings off and replace with the polyurethane bushings. Grease the inner bore with silicone-based bushing grease before reinstalling — poly bushings need lubrication to avoid squeaking, unlike rubber. Reinstall the brackets and torque to spec.
Step 4: Separate the Ball Joint
With the lower control arm supported, use the ball joint separator to break the taper free from the steering knuckle. Don't hammer on the knuckle directly to "shock" it loose — use the separator's mechanical force instead to avoid damaging the knuckle or boot.
Step 5: Remove and Service the Lower Control Arm
Unbolt the control arm from the subframe. If you're only refreshing bushings on the arm itself (rather than replacing the whole arm), press the old bushing out and the new one in per your bushing kit's instructions.
Step 6: Reinstall with the Prying Tool
Getting a fresh, tighter bushing to line back up with its mounting point is exactly what the prying tool is for — it gives you the leverage to align the arm without three hands and a curse word. Reinstall the ball joint into the knuckle and torque everything to spec, ideally with the suspension loaded (at ride height, or as close as you can simulate on stands) rather than fully drooped, since bushing torque specs on most cars assume ride-height loading to avoid pre-stressing the rubber or poly.
Step 7: If You're Pulling the Strut
Should you decide to address the springs, mounts, or struts themselves while everything's apart, the coil spring compressor is essential — never attempt to remove a strut assembly with a loaded spring uncontained. Compress evenly from both sides before loosening the strut mount nut.
Step 8: Torque Check and Alignment
Recheck every fastener you touched once the car's back on the ground. A front-end refresh like this changes your alignment settings even if you didn't touch the tie rods — budget for a full alignment afterward rather than skipping it.
Torque Specs
Values below are for the BMW E46 3-Series front suspension.
| Fastener | Torque | Notes |
|---|---|---|
| Sway bar bracket bolts to subframe (M8) | 22 Nm (16.2 ft-lb) | Fit new self-locking nuts |
| Lower control arm ball joint nut, outer to steering knuckle (M12) | 65 Nm (47.9 ft-lb) | Self-locking nut, fit new; hold the stud so it does not spin |
| Lower control arm ball joint nut, inner to subframe (M14) | 90 Nm (66.4 ft-lb) | Self-locking nut, fit new |
| Control arm mounting bracket bolts to subframe (M10) | 59 Nm (43.5 ft-lb) | Only if you are removing the arm bushing bracket |
- One source lists a higher value (110 Nm) for an unclear "lower control arm inner" item. The 90 Nm figure is the one four independent sources agree on for the inner ball joint nut.
Sources: ECS Tuning E36/E46 control arm kit instructions; FCP Euro E46 control arm guide; Build Journal E46 torque guide (cites the Bentley manual); Garagistic E46 bolt torque guide.
Always verify torque values against the service manual for your exact model year and engine before final tightening. These figures are provided as a reference and Wrench Haus is not responsible for damage resulting from incorrect torque.
Common Mistakes
- Skipping the penetrating oil soak — the fastest way to snap a bolt in an E46 subframe
- Torquing bushings at full droop — pre-loads the rubber/poly incorrectly and shortens its life
- Forgetting the alignment afterward — fresh bushings change how the suspension geometry settles
- Dry-fitting polyurethane bushings — they need grease; rubber doesn't, poly does
See the full BMW E-Series lineup for more E46, E36, and Z4 suspension parts.
Frequently Asked Questions
What are the signs of worn front suspension bushings on a BMW E46?
E46 front bushings don't fail dramatically; they slowly go soft. The typical signs are vague steering and extra clunk over bumps, and many owners adjust to the change without noticing how much has deteriorated. Refreshing the sway bar bushings with polyurethane and renewing the lower control arm hardware brings back the sharp, planted feel these chassis are known for.
Do polyurethane sway bar bushings need grease?
Yes. Unlike rubber, polyurethane bushings need lubrication to avoid squeaking. Grease the inner bore with a silicone-based bushing grease before reinstalling them on the sway bar and refitting the brackets. Dry-fitting poly bushings is one of the common mistakes on an E46 front-end refresh.
Should E46 control arm bushings be torqued at ride height?
Ideally, yes. Torque the bushing fasteners with the suspension loaded at ride height, or as close as you can simulate on stands, rather than fully drooped. Bushing torque specs on most cars assume ride-height loading, and torquing at full droop pre-loads the rubber or poly incorrectly and shortens its life.
Do I need an alignment after replacing E46 control arm bushings?
Yes. A front-end refresh like this changes your alignment settings even if you didn't touch the tie rods, because fresh bushings change how the suspension geometry settles. Recheck every fastener once the car is back on the ground, then budget for a full alignment rather than skipping it.
