How to Boost Leak Test a Turbocharged VW, Audi or BMW (EA888, N54, N55)

29. Oktober 2026

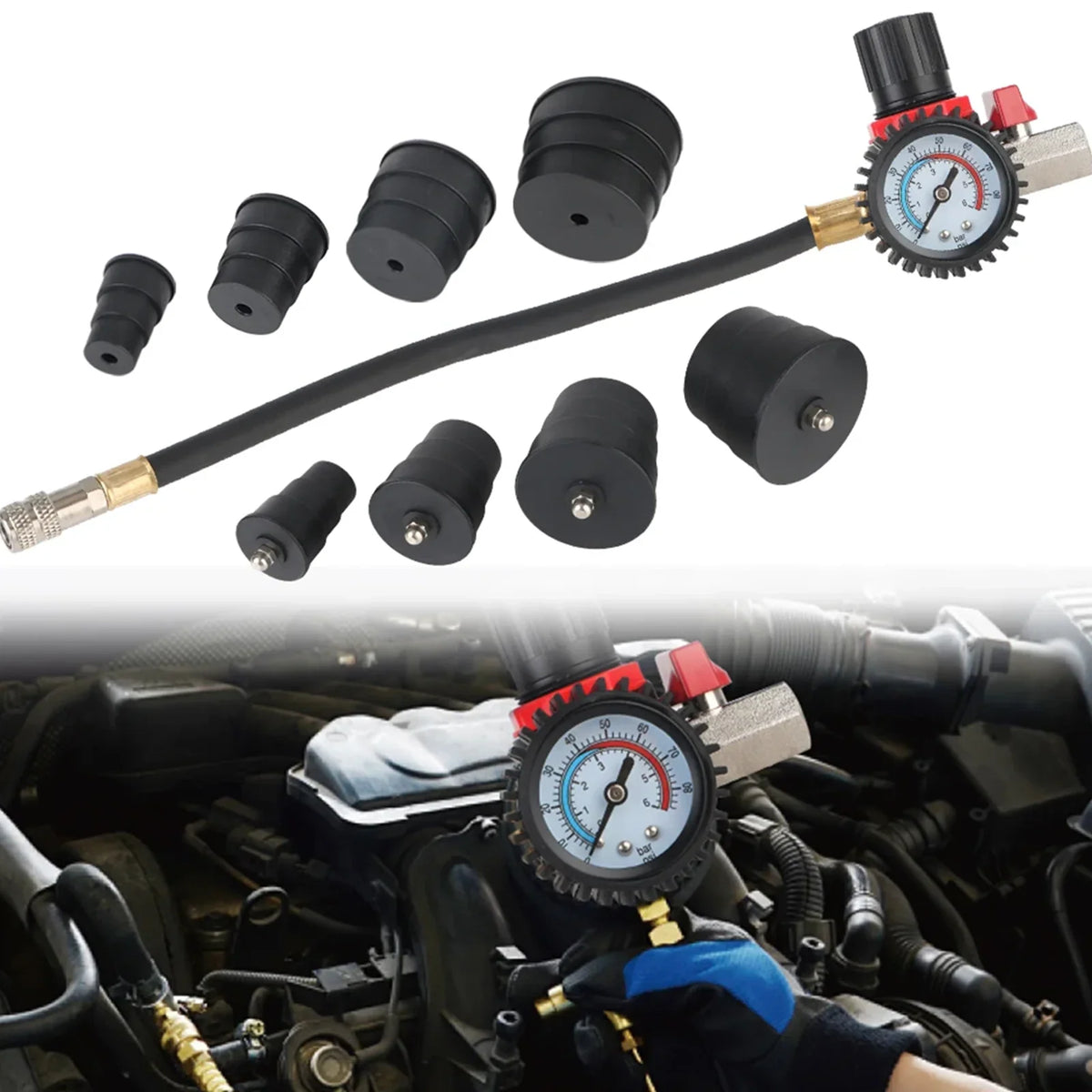

9-piece turbo boost leak tester kit with 90 PSI gauge

A turbocharged engine can only make the boost it holds onto. A split coupler, a loose clamp or a tired diverter valve gasket leaks charge air before it reaches the cylinders. You lose power, the turbo works harder, and BMW N54/N55 owners often see an underboost code (30FF on the N54). A boost leak test finds the leak in about an hour with no guessing. This guide covers how to do it safely on VW/Audi TSI and BMW turbo engines.

Signs You Might Have a Boost Leak

Loss of power, or a car that feels flat compared to how it used to
Underboost codes, or datalogs where actual boost falls short of requested boost
A new whoosh or hiss under load
Oily residue around intercooler pipe joints

A boost leak test isn't a compression or head-gasket test. If you're chasing coolant loss or white smoke, see our cylinder leak-down guide and the combustion leak tester.

Tools You'll Need

Turbo Boost Leak Tester Kit: 9 pieces with adapters from 35mm to 90mm (1-3/8" to 3-1/2") and a gauge reading to 90 PSI, so it covers most intake and turbo inlet sizes
An air compressor with a regulator. Many tire inflators can't hold a steady test pressure.
A ball valve in the air line within reach, so you can shut off air quickly
A cap or plug for the crankcase ventilation (PCV/CCV) port
A spray bottle of soapy water (dish soap and water)
Screwdrivers and sockets for tightening clamps

Before You Start: Safety

Work on a cold engine with the ignition off, parked on flat ground.
Protect the crankcase ventilation system. The PCV/CCV system isn't built to see boost pressure from outside. Disconnect and cap the PCV/CCV hose where it joins the intake, or the test can push air through seals that aren't meant to hold it. On the N54, the intake setup used in published DIYs also caps the PCV connection at the rear intake tube.
Bring the pressure up slowly. Start low and add pressure in steps.
Never exceed your car's peak boost. Testing above the boost your turbo actually makes can damage couplers and seals. A low test pressure (around 10 PSI) is usually enough to show a real leak. One published N54 DIY found small leaks at 10 PSI.
Keep soapy water off electrical connectors and the alternator.

How to Do a Boost Leak Test

Assemble the tester on the bench and tighten every fitting. A leak in the tester itself will throw off your results.
Remove the intake at the turbo inlet, or at the intake elbow, depending on your setup. You're sealing the system at the point where filtered air normally comes in.
Fit the right adapter from the kit into the turbo inlet or intake tube and clamp it tight. On twin-turbo engines like the N54, both inlets have to be sealed or capped.
Cap the PCV/CCV port on the intake side.
Connect the air supply through the regulator and ball valve. Bring the pressure up slowly to your test pressure.
Listen first. A real leak usually hisses. Some air escaping is normal, because a few intake and exhaust valves are always partly open on a stopped engine. You're looking for loud or obvious leaks.
Spray soapy water on every coupler, clamp, intercooler end tank, the throttle body joint and the diverter valve area. Bubbles mark the leak.
Watch the pressure decay. Close the air supply and watch the gauge. A slow drop is normal. A fast drop, or a system that won't build pressure at all, means a big leak.
Fix, re-test, then road test. Tighten or replace what you found, test again, and log a drive to confirm boost now matches the request.

Common Leak Points

VW/Audi EA888 and other TSI engines:

Intercooler hoses and end-tank connections
Charge pipe and throttle pipe couplers and clamps
Diverter valve and its gasket
Boost/temperature sensor (PUT) gasket and turbo muffler gasket
Intake manifold gasket

BMW N54/N55 and other BMW turbo engines:

Charge pipe and its joints
Diverter valves and their hoses
Turbo inlet pipes and O-rings
Intercooler connections
On the 335d: the factory intercooler/turbo outlet hose. Our silicone boost hose for the 335d (11617812274) replaces it.

What a Pressure Test Can't Find

A static test won't always catch a diverter valve that leaks internally, a failing PCV diaphragm, or wastegate problems like the vacuum lines and actuators on the N54. If the test passes but underboost continues, check those next. You can also use a smoke leak detector on the intake and vacuum side, where smoke shows small leaks that soapy water misses.

More turbo-engine tools are in the EA888 collection and the BMW N-Series collection, and the Diagnostics Starter kit covers the basics.

Frequently Asked Questions

What are the symptoms of a boost leak?

Common signs include a loss of power or a car that feels flat, underboost codes or datalogs where actual boost falls short of requested boost, a new whoosh or hiss under load, and oily residue around intercooler pipe joints. On the BMW N54, an underboost condition often shows up as code 30FF.

What pressure should I use for a boost leak test?

Bring the pressure up slowly and never exceed your car's peak boost, since testing above what your turbo actually makes can damage couplers and seals. A low test pressure of around 10 PSI is usually enough to show a real leak, and one published N54 DIY found small leaks at that pressure.

Why do I need to cap the PCV port during a boost leak test?

The PCV/CCV crankcase ventilation system isn't built to see boost pressure from outside. Disconnect and cap the PCV/CCV hose where it joins the intake, or the test can push air through seals that aren't meant to hold it.

Where are the most common boost leaks on VW/Audi TSI and BMW turbo engines?

On EA888 and other TSI engines, check intercooler hoses and end tanks, charge and throttle pipe couplers, the diverter valve and its gasket, the PUT sensor and turbo muffler gaskets, and the intake manifold gasket. On BMW N54/N55 engines, check the charge pipe, diverter valves and hoses, turbo inlet pipes and O-rings, and intercooler connections.
