How to Change DSG Fluid and Filter on a VW/Audi (6-Speed Wet-Clutch DSG)

12. Oktober 2026

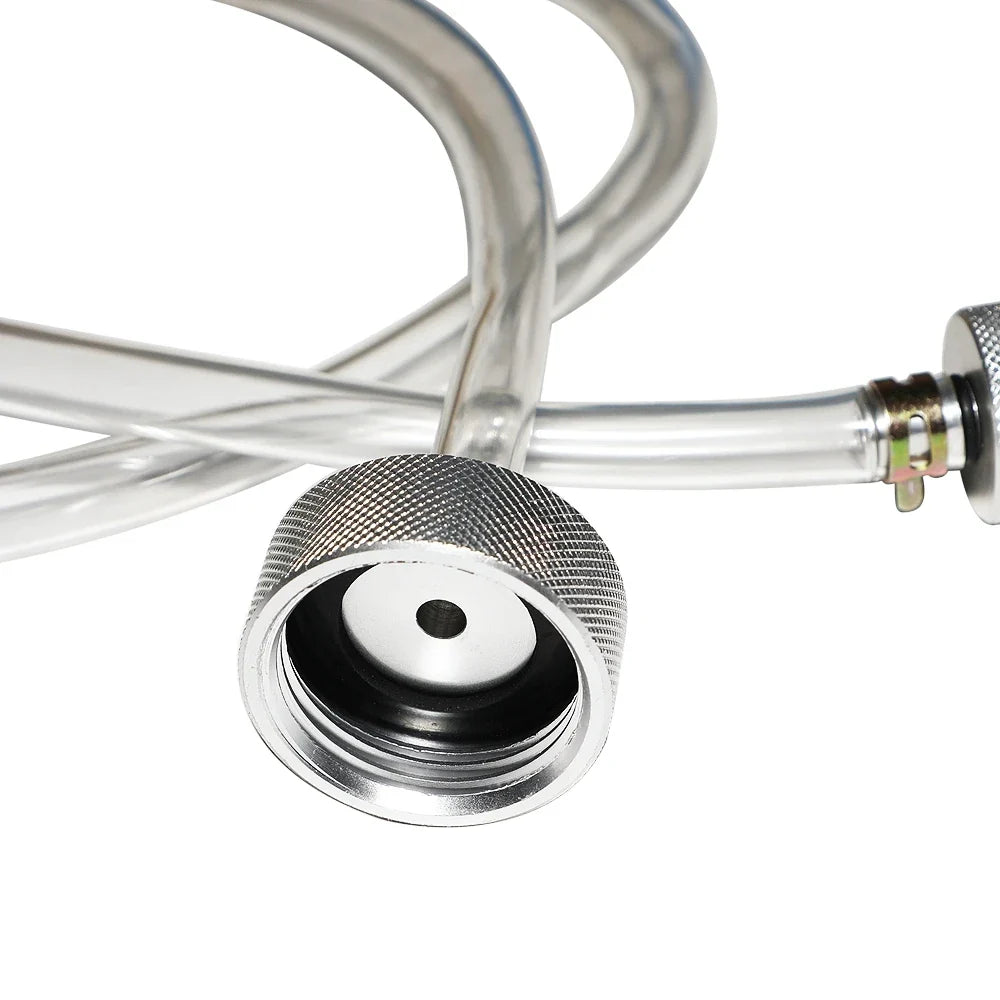

DSG oil filling hose kit connected to a VW/Audi 6-speed DSG transmission for a fluid and filter change | Wrench Haus

A 6-speed wet-clutch DSG spends its life pushing fluid through the mechatronic unit and cooling the clutch packs, and that fluid and the filter are the only things standing between you and a very expensive repair. The service itself is not hard. What catches people out is the fill: this gearbox is filled and level-checked at a specific fluid temperature, and if you skip that step you'll either run it low or overfill it. This guide covers the 6-speed wet-clutch DSG (02E / DQ250) only.

Read this first: the 7-speed dry-clutch DSG (0AM / DQ200) is a different service with different fluid handling, and this guide does not cover it. The wet 7-speeds (for example 0BH / DQ500 and 0GC / DQ381) also differ from the 6-speed, so check the manual for those rather than following this procedure. If you're not sure which box you have, confirm the transmission code before buying anything.

Tools You'll Need

DSG Gearbox Oil Filling Hose Kit (VAS 6262A style) — connects your pump or bottle to the pan so you can fill from below and read the level at the overflow tube. Check the listing to confirm it matches your gearbox before you order.
A VAG-capable diagnostic tool that reads transmission fluid temperature. VCDS is the reference tool for this. A basic generic scanner like the V519 OBD2 scanner is fine for engine codes and live data, but generic OBD2 tools often can't reach the transmission control module's fluid temperature. Don't buy it for this job unless you've confirmed it can.
Correct DSG fluid and a new filter and O-ring kit for your gearbox
Bit sockets for the plugs and a 24 mm socket for the filter housing (sizes commonly quoted for this box; confirm on your car)
Torque wrench, catch pan, jack stands, and a way to get the car level

DSG gearbox oil filling hose kit VAS 6262A, coiled hose DSG filling hose kit fill port adapter for the 02E pan

You do not need the clutch retaining bar for a fluid change. That tool is for clutch pack removal and is covered in the last section.

Why and When to Do It

The fluid lubricates the gearset and works the hydraulics and clutch packs, so it sees heat, shear, and clutch material. The filter catches debris before it reaches the mechatronic unit. Published service intervals for this box vary a lot between sources, so we're not going to quote one. Use your service manual, then shorten it if the car is tracked, towed with, or tuned. Symptoms that make a service worth doing sooner: harsh or slow engagements, shudder pulling away, or a car with unknown history.

Step 1: Confirm the Box and Get the Right Fluid

Confirm you have the 02E / DQ250 before anything else. The fluid must be the VAG-specified DSG fluid for this gearbox. Parts catalogs and service write-ups list it under the part number family G 052 182, but the suffix varies, so match it to your car through your parts catalog or the manual. Don't substitute a general ATF. Kits are convenient, but check that yours includes the filter, the O-ring, and a new seal for the plug you'll remove.

Total capacity and service-fill quantities are quoted inconsistently across sources, and a service does not replace all the fluid in the gearbox. We're leaving the number out: buy what the manual or kit specifies, and expect to be guided by the overflow tube, not by a measuring jug.

Step 2: Prep the Car and Scan Tool

Get the car level and safely supported, since the overflow tube sets the fill level and a tilted car gives a false reading. On many transverse cars the airbox and battery tray sit above the transmission and need to come out for filter access. Hook up your VAG-capable tool, open the transmission control module (address 02), and find the fluid temperature in measuring block group 019. Ross-Tech documents this block for the 02E. Confirm it reads before you drain anything.

Step 3: Drain the Old Fluid

Put the catch pan under the pan plug. Remove the large plug (a 14 mm bit in most write-ups), then the overflow tube inside it (an 8 mm bit). Fluid above the height of that tube drains out. Let it run until it slows to a drip. Note how much comes out; it's a useful sanity check against what you put back.

Step 4: Replace the Filter

The filter housing is on the front of the box, and most write-ups use a 24 mm socket on an extension. Lift the cap, tilt it so fluid runs back into the transmission, and pull the old filter and O-ring. Fit the new filter in the same orientation as the old one, lightly oil the new O-ring with fresh fluid, and refit the housing. Tighten to 20 Nm, a figure that matches across multiple service write-ups for this box.

Step 5: Fit the Overflow Tube and Connect the Filling Hose

Install the overflow tube, tightened to 3 Nm per multiple write-ups. Then thread the filling hose kit into the pan opening and connect it to your pump or fluid supply. Push fresh fluid in with the engine off, using the amount in your manual or kit instructions as the starting point. The filling hose kit exists so you can do this without holding a bottle upside down under the car, and so you can stop and start the flow without making a mess.

DSG oil filling hose kit connected to the transmission fill port

Step 6: Warm Up to the Fill Temperature

Start the engine and let it idle while you watch the fluid temperature on your scan tool. Multiple write-ups for this gearbox give a 35 to 45 °C window for setting the level, and the upper end is not a target you want to overshoot. If it climbs past the window, shut down and let it cool. An infrared gun on the pan is a fallback and can read several degrees off from the control module, so treat it as a rough guide only.

Step 7: Set the Level at Temperature

Inside the window, with the hose still connected, watch the overflow tube. A trickle means the level is right. Nothing coming out means it needs more fluid, so add a little at a time. A steady stream means it's overfilled, so let it drain back to a trickle. When it's right, remove the hose, fit the plug with its new seal, and torque it to the value in your manual. Sources disagree on the plug torque, so we're leaving that number out.

Step 8: Check for Leaks and Road Test

Wipe everything down, drive gently for a few minutes, and check the plug and filter housing for seepage. Clear any codes you set while the airbox or battery was out, and refit everything you removed.

Common Mistakes

Setting the level cold — fluid expands, so a cold reading is wrong. The temperature window is not optional.
Trusting a generic OBD2 scanner — if it can't read the transmission fluid temperature, you're guessing.
Using the wrong fluid or a general-purpose ATF — use the VAG-specified DSG fluid, not something that just says "automatic."
Following this guide on a 7-speed dry-clutch box — 0AM / DQ200 is a different service. Stop and check the manual.
Reusing the plug seal or forgetting the filter O-ring — cheap parts, expensive leak.
Ignoring the mounts — a worn transmission mount can make a healthy DSG feel rough.

Related Guides and Products

If a shudder or clunk on take-off is still there after a fresh service, check the mounts: see our Audi DSG transmission mount insert guide. If you go further into a clutch job, that is where the DSG clutch retaining bar (T10303) comes in. It is a clutch pack removal tool for the 02E and is not needed for a fluid change.

Frequently Asked Questions

Does this DSG fluid change procedure apply to the 7-speed DSG?

No. This procedure covers only the 6-speed wet-clutch DSG (02E / DQ250). The 7-speed dry-clutch DSG (0AM / DQ200) is a different service with different fluid handling, and the wet 7-speeds such as 0BH / DQ500 and 0GC / DQ381 also differ. Confirm your transmission code before buying anything, and check the manual for other gearboxes.

At what temperature should DSG fluid level be checked?

Multiple write-ups for the 02E give a 35 to 45 °C window for setting the level, read from transmission control module measuring block group 019 with a VAG-capable tool such as VCDS. Don't overshoot the upper end; if the temperature climbs past the window, shut down and let it cool. Setting the level cold gives a wrong reading because fluid expands.

How do I know when the DSG fluid level is correct?

With the car level, the engine idling inside the temperature window and the filling hose connected, watch the overflow tube. A trickle means the level is right. Nothing coming out means it needs more fluid, so add a little at a time. A steady stream means it's overfilled, so let it drain back to a trickle.

Can I use a generic OBD2 scanner for a DSG fluid change?

Usually not. Generic OBD2 tools often can't reach the transmission control module's fluid temperature, and without that reading you're guessing at the fill level. A basic generic scanner is fine for engine codes and live data, but don't buy one for this job unless you've confirmed it can read transmission fluid temperature.
