VAG electrical connectors use a small locking tab or slide-lock that's easy to see and hard to actually release with fingernails alone, especially in a tight engine bay or after years of heat-cycling has made the plastic more brittle. Force the connector apart without releasing the lock first and you'll snap the tab — turning a thirty-second disconnect into a connector replacement.
Tool You'll Need

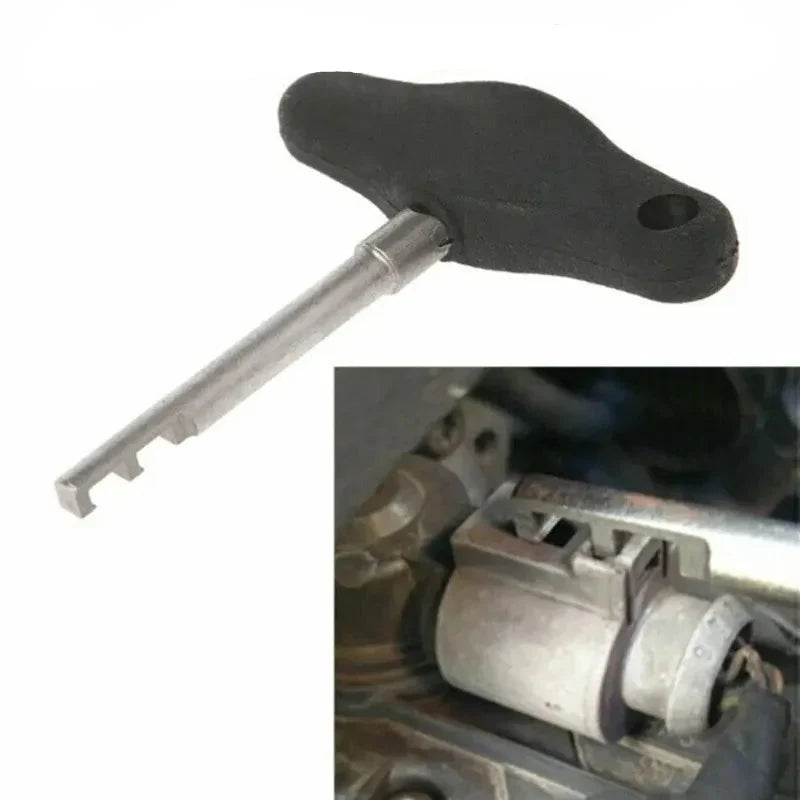

- Electrical Connector Removal & Unlock Tool — a slim pin sized to reach and release VAG's recessed locking tabs without prying on the connector body itself
Step 1: Identify the Lock Type
VAG connectors use a few different locking styles — a side-mounted secondary lock (often orange or a different color from the main connector), a top-mounted slide lock, or a squeeze-tab design. Look before you pull; figure out which type you're dealing with rather than guessing.
Step 2: Release Any Secondary Lock First
Many VAG connectors have a secondary locking wedge (sometimes called a CPA — connector position assurance) in addition to the main latch. This has to be released or slid back before the main latch will move at all. Trying to release the main latch while the secondary lock is still engaged is one of the most common ways people break these.
Step 3: Insert the Tool at the Lock Point
With the secondary lock cleared, insert the removal tool's pin into the release point on the connector — usually a small gap or window right at the main latch — and apply gentle pressure to depress the latch itself, not to pry the connector halves apart.
Step 4: Pull Straight, Not at an Angle
With the latch depressed, pull the connector straight off its mating half. Pulling at an angle while the latch is only partially released is a common way to snap the tab even with the tool in hand — make sure the latch is fully clear before applying any pull force.
Step 5: Inspect Before Reconnecting
Check both the connector and the pins inside for corrosion, bent pins, or a cracked lock tab before pushing it back together. A connector you're about to reconnect with a compromised lock is worth replacing rather than taping shut and hoping.
Step 6: Reconnect and Confirm the Lock Engages
Push the connector halves together until you feel and, ideally, hear the latch click home, then reinstall any secondary lock. Give it a gentle tug to confirm it's actually locked before moving on — a connector that looks seated but isn't fully locked is a classic source of an intermittent electrical gremlin down the road.
Common Mistakes
- Prying with a flathead screwdriver — works until it doesn't, and when it doesn't, it cracks the housing
- Missing the secondary lock — the main latch won't release while it's still engaged, and forcing it snaps something
- Pulling before the latch is fully depressed — partial release plus pull force is exactly how tabs break
- Not confirming the lock re-engages on reassembly — a connector that isn't fully seated causes problems that are much harder to diagnose later than the original disconnect would have been to do carefully
