Coil Spring Compressor Safety: Which Type to Use on VW, Audi, BMW and Mercedes Struts

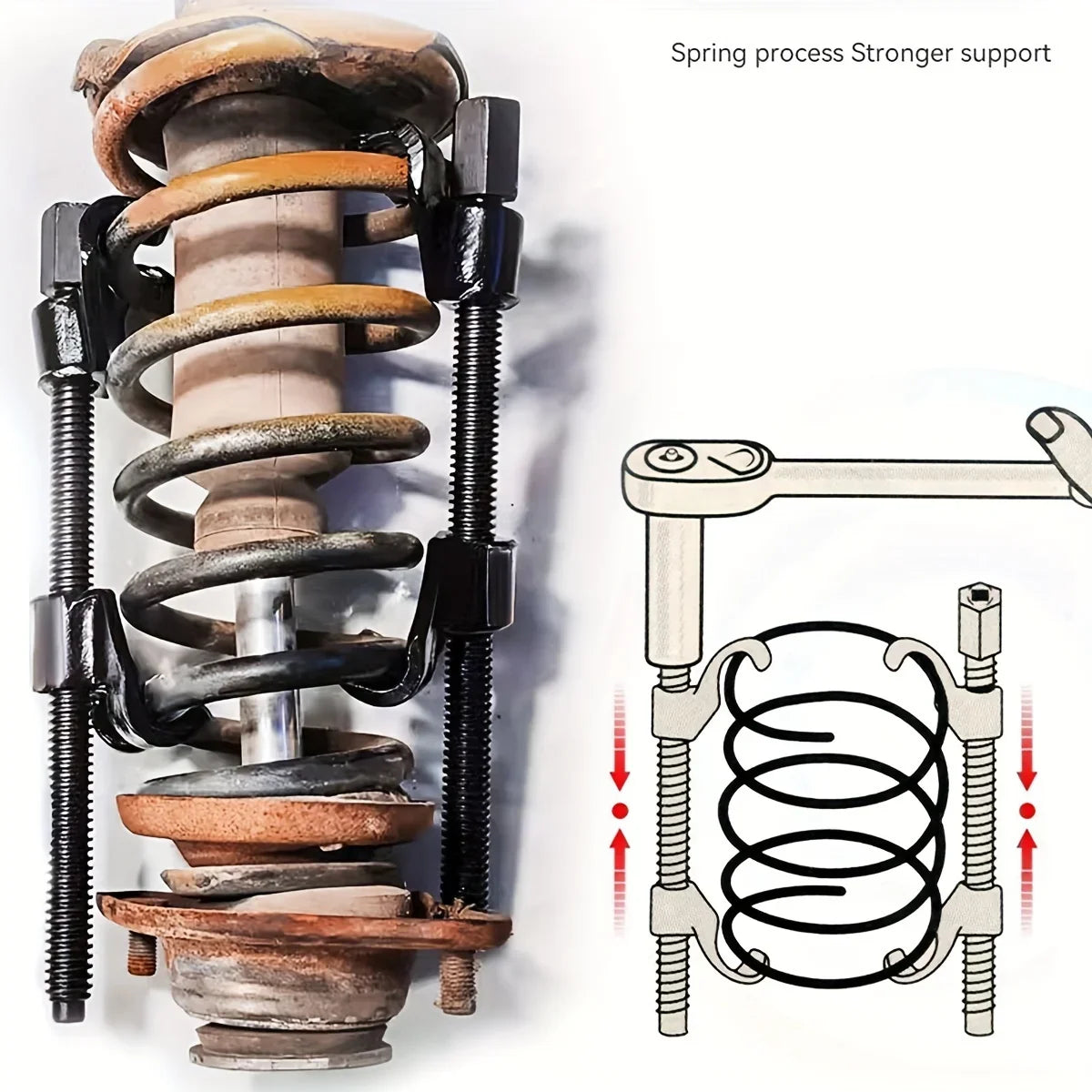

Heavy-duty coil spring compressor fitted to a suspension spring

A compressed coil spring stores a lot of energy, and the tool holding it is the only thing between that energy and your face. Every reputable source we checked, from retailers to tool-maker manuals, says the same thing: injuries from spring compressors almost always come from a damaged tool, a badly seated hook, or a shortcut. This guide covers what kinds of compressors exist, which type our two sets are, and how to use an external clamp-type compressor on a VW, Audi, BMW or Mercedes strut without doing anything dumb.

Safety-critical: if you are not comfortable with this job, have a shop do the spring work. A strut swap is not worth an eye or a hand.

Compressor Types: Which Is Which

  • External (clamp-type): hooks or claws grip the outside of the spring and are pulled together with threaded rods, usually used in pairs on opposite sides. This suits struts where the shock body and piston rod run through the middle of the spring. Both Wrench Haus compressors are this style.
  • Internal: a central threaded shaft with arms that pull the coils together from inside. Works when nothing blocks the spring's center.
  • Klann-style / assembly-fixture types: plates and a telescoping jack shaft, or a strut-mounted fixture that holds the whole assembly. FCP Euro notes these are recommended or even required for many high-tension springs on European cars. If your service manual calls for a specific fixture tool, use it.

External clamps are the common DIY choice and work well when used properly. They are also the type that lets you make a mistake, because the hooks can slip if they are not seated on the coil.

Tools You'll Need

Heavy-duty coil spring compressor fitted to a suspension spring

2-piece coil spring compressor set

You also need safety glasses or goggles, gloves, jack stands on level ground, a hand ratchet or breaker bar, and a bench vise or a stable way to hold the strut assembly. Oil the compressor threads before use.

Check Fit Before You Buy or Start

We are not going to tell you a given compressor "fits" a given model. Springs vary by engine, trim, suspension package and year, even on the same chassis. Instead, match the tool to the spring:

  • Measure the spring's free length and wire thickness, and its outside diameter.
  • Compare those to the compressor's rated capacity and working range (check the packaging or the seller's specs).
  • If the spring is beyond the tool's range, or the rating is unclear, do not use it. Use a different tool.

Harbor Freight's manual for its strut compressor, for example, lists a maximum load and a maximum spring and wire diameter. Every compressor has limits like this, and exceeding them is how tools fail.

Step 1: Inspect the Tool

Look over the hooks, rods and threads for cracks, rust pitting, gouges, bent parts or rough threading. Run the screws by hand to confirm they turn smoothly. If anything looks bent, cracked or worn, do not use it. Retire it.

Step 2: Support the Car and Get the Strut Out

Lift and support the car on jack stands, never on a jack alone, and remove the strut assembly following your service manual. Clamp the assembly securely in a vise, or set it on a stable surface where it cannot roll. Keep your face and body out of the line of the spring ends.

Step 3: Seat the Hooks

Place one compressor on each side of the spring, directly opposite each other. Set the hooks onto the coils so they are fully seated, not perched on an edge. The hooks should sit in line with the spring's center axis and engage the same number of coils on each side, which keeps the load balanced. Test-fit by snugging the screws lightly and confirming nothing shifts. If it looks crooked, back off and reposition.

Step 4: Compress Evenly by Hand

Turn each compressor in small, alternating increments, a half-turn on one side then the same on the other, so the spring compresses squarely. Use a hand ratchet. Keep watching the spring: if it starts to bow, tilt, or one side is doing more work, stop, release and reposition.

Compress only as far as you need. You want the spring to come off the top mount so the mount nut is unloaded. Do not crank until the coils touch each other or bind.

Step 5: Remove the Top Nut Only When the Spring Is Held

The top nut is only safe to loosen once the compressors are carrying the spring and the top mount is slack. Tool-maker instructions are explicit: do not loosen the piston rod nut while the spring is still pressing on the mount. If the mount is still loaded when you try the nut, stop and compress further.

Step 6: Swap, Reassemble and Release Slowly

Transfer or replace parts, then reassemble the strut with the spring seated correctly in the top hat and on the lower seat. Snug and torque the top nut to the figure in your service manual before you release the compressors. Then unwind the compressors in small alternating increments, watching that the spring seats properly as it extends.

Never Use an Impact Gun on the Compressor

Multiple sources, including The Drive, Harbor Freight's manual and performance-parts guides, say not to run a compressor with an impact or air tool. It removes your feel for the load, compresses unevenly, and makes over-compression easy. An impact wrench is fine for the final top-nut tightening after the spring is fully assembled and held, if your manual allows it, but never on the compressor.

Common Mistakes

  • Using a damaged or unrated tool. Cracks, bent hooks or worn threads are a scrapped tool.
  • Loosening the top nut early. Confirm the mount is unloaded first.
  • Uneven compression. One side cranked down first is how a spring kicks out.
  • Compressing to coil bind. Only take what you need to unload the mount.
  • Improvised methods. Chains, clamps and homemade rigs are not a substitute for a proper compressor.
  • No eye protection. Goggles, every time.
  • Pointing the assembly at yourself. Aim spring ends away from people.

Springs That Need Extra Care

Some suspensions, including air, adaptive and unusual spring shapes, have their own procedures and warnings. We could not verify blanket rules for those, so we are not making any: check your service manual for the exact model and follow its instructions, including any required special fixture.

Related

If you are already in the front suspension, see our VW Mk2/Mk4 control arm bushing guide and the BMW E46 front suspension refresh. The two spring compressors above are linked in the tool list.

Frequently Asked Questions

Is it safe to use an external coil spring compressor on a European car strut?

External clamp-type compressors are the common DIY choice and work well when used properly, but they can slip if the hooks aren't fully seated on the coils. Injuries almost always come from a damaged tool, a badly seated hook or a shortcut. If you're not comfortable with the job, have a shop do the spring work; a strut swap isn't worth an eye or a hand.

Can I use an impact gun on a spring compressor?

No. Multiple sources, including tool-maker manuals, say never to run a spring compressor with an impact or air tool. It removes your feel for the load, compresses unevenly and makes over-compression easy. Use a hand ratchet in small, alternating increments. An impact wrench is only acceptable for final top-nut tightening once the spring is assembled and held, if your manual allows it.

How do I know if a spring compressor will fit my car's spring?

Match the tool to the spring rather than the car model, since springs vary by engine, trim, suspension package and year. Measure the spring's free length, wire thickness and outside diameter, then compare them with the compressor's rated capacity and working range. If the spring is beyond the tool's range or the rating is unclear, don't use it.

When is it safe to remove the strut top nut?

Only once the compressors are carrying the spring and the top mount is slack. Tool-maker instructions are explicit that you should not loosen the piston rod nut while the spring is still pressing on the mount. If the mount is still loaded when you try the nut, stop and compress further, but never to the point where the coils touch or bind.

Sources

Always verify specifications against the service manual for your exact model year and engine before working.
