The EA211 is the small-displacement turbo four found across the VW/Audi/SEAT/Skoda lineup — Golf, Jetta, A3, Ibiza, Octavia — in 1.0T, 1.2T, 1.4T, and naturally aspirated 1.6 form. It's a chain-driven engine on some later variants, but the vast majority on the road use a timing belt, and getting the cam-to-crank relationship wrong by even a few teeth results in bent valves. This guide walks through the full procedure and the exact locking tools that make it a one-attempt job instead of a three-attempt job.
Tools You'll Need
- EA211 Timing Belt Tool Kit — crank and cam alignment tools sized specifically for EA211
- EA211 Camshaft & Crankshaft Timing Tool Set — locks both cams and the crank simultaneously at TDC
- Timing Belt Tensioner Adjuster Pulley Wrench — sets belt tension without twisting or over-tensioning the pulley
You'll also need a torque wrench, a socket for the crank pulley bolt, basic hand tools to strip the accessory drive and covers, and — if you're touching the water pump while you're in there, which we'd recommend since it's driven off the same belt — new coolant.
Before You Start
- Disconnect the battery negative terminal first. You do not want the starter engaging while the cam and crank are pinned.
- Work cold. Never set timing on a hot engine — components expand and your marks won't be accurate.
- EA211 covers several sub-variants (1.0T, 1.2T, 1.4T, 1.6 MPI) with different bracket and cover layouts. Confirm your exact engine code before ordering parts — the timing tools above are sized for the EA211 family, but belt part numbers are not universal.
Step 1: Remove the Accessory Drive and Covers
Remove the serpentine belt, alternator bracket, and upper timing cover to expose the crank pulley and cam sprocket. Support the engine and remove the lower mount if it's blocking access to the lower cover.
Step 2: Rotate to TDC on Cylinder 1
Using a socket on the crank pulley bolt, rotate the engine in its normal direction of rotation until the timing marks on the crank pulley and flywheel housing (or the crank sprocket, depending on cover style) line up at Top Dead Center for cylinder 1.
Step 3: Lock the Camshaft(s)

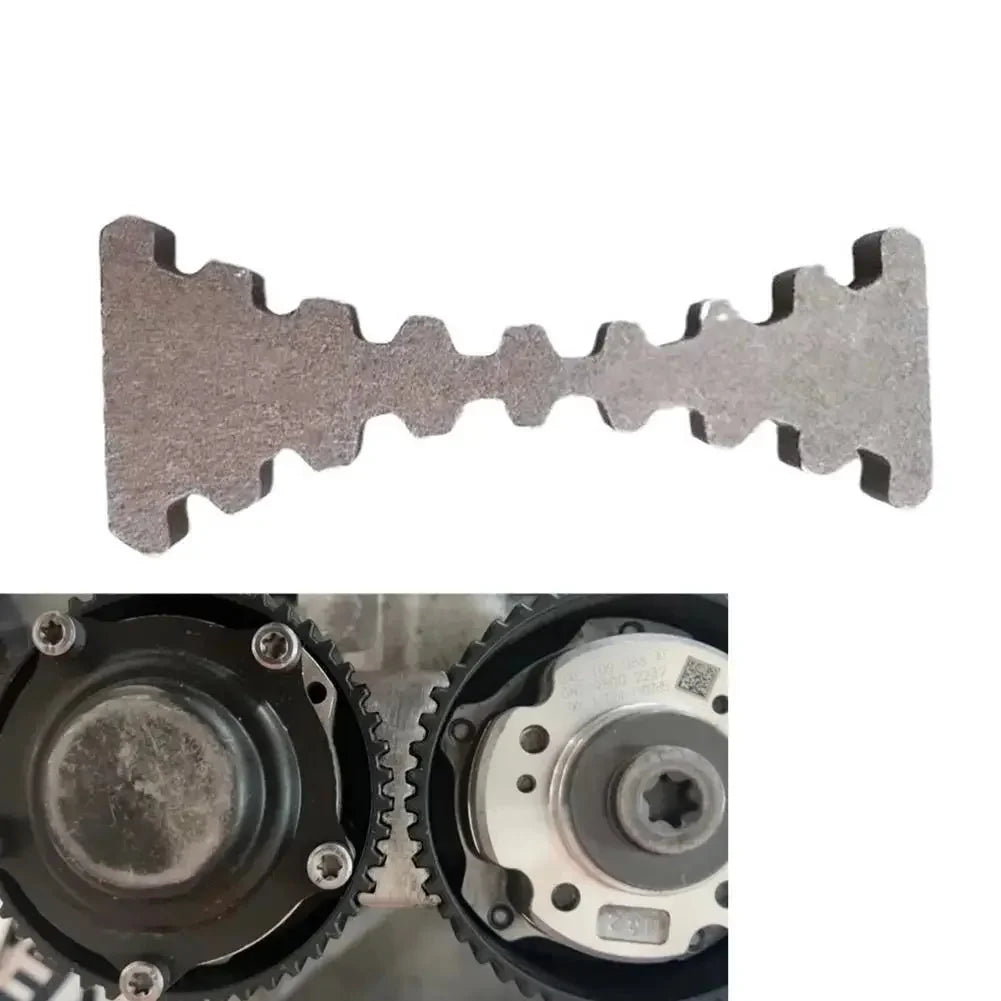

Fit the camshaft locking tool from the EA211 timing tool set into the slot on the camshaft hub. It should sit flush and square — if it's binding or sitting at an angle, the cam isn't at its true locked position and you need to rotate the crank one more full turn and try again.
Step 4: Lock the Crankshaft
Insert the crankshaft locking pin into the block at the specified access point (usually behind a small plug near the flywheel housing). If it won't seat fully, back the crank off a few degrees and try again — never force it.
With both tools seated, double-check that nothing is under spring pressure or bind before you go any further.
Step 5: Remove the Old Belt
Release the tensioner using the tensioner adjuster wrench and slip the belt off the sprockets. This is also your moment of truth for inspecting the water pump — if there's any weep or play in the bearing, replace it now while everything is apart.
Step 6: Install the New Belt
Work the new belt on starting from the crankshaft sprocket, then up around the idler, water pump, and camshaft sprocket last, keeping tension on the non-tensioner side as you go. Confirm the belt teeth are fully seated on every sprocket before releasing anything.
Step 7: Set Tension and Verify
Use the tensioner adjuster wrench to bring the tensioner to its specified position (most tensioner pulleys have an alignment window or pointer — center it before locking). Torque the tensioner bolt to the factory spec for your specific engine code; this varies across EA211 sub-variants, so confirm the exact figure and rotation angle in the official repair manual for your engine code rather than assuming a universal number.
Remove both locking tools. Rotate the crankshaft two full turns by hand in the normal direction of rotation, then bring it back to TDC and re-insert both locking tools. If they seat cleanly, timing is correct. If either tool binds or won't seat, something shifted — stop and re-check before proceeding.
Step 8: Reassemble
Reinstall the covers, alternator bracket, and serpentine belt. Refill coolant if you opened the system. Reconnect the battery.
Common Mistakes That Bend Valves
- Rotating the crankshaft with the cams unlocked. Even a partial rotation with the cams free can bring a valve into contact with a piston on an interference engine. Always lock both before turning anything.
- Using an impact wrench on the tensioner bolt. This can shock-load and damage the hydraulic or spring tensioner mechanism. Hand-torque only.
- Skipping the two-turn double-check. This is the single step that catches a belt that's off by half a tooth — do not skip it to save five minutes.
- Assuming belt direction doesn't matter. Some belts are directional. Check for rotation arrows before install.
Final Word on Torque Specs
We've deliberately not printed a single torque number for the tensioner bolt in this guide. EA211 spans a wide range of engine codes (1.0T, 1.2T, 1.4T, and 1.6 variants) built across nearly a decade, and the exact torque and rotation-angle spec differs between them. Pull the figure for your specific engine code from the official VW/Audi/SEAT/Skoda repair manual before final torque — it takes two minutes and it's the difference between a tensioner that holds and one that doesn't.
